Shaker Tables

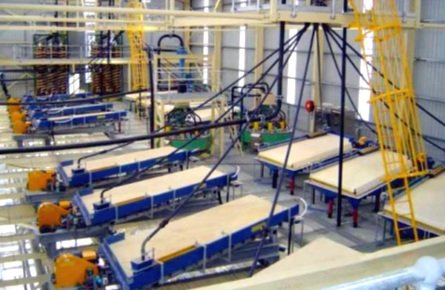

PhySep supplies shaker tables which feature excellent separation between higher density material, lower density material, and waste products. These tables are a proven method and highly utilized in mineral processing facilities worldwide for the recovery of precious metals. From low tonnage streams, recovery of cassiterite and tantalite/columbite from ores, and concentration/upgrading of fine gravity circuits for gold, tin and mineral sands - gravity tables are cost effective and highly recommended.

Common Industries:

Mineral Sands: Zircon, Ilmenite, Rutile, Other Ti Minerals Metals Recycling: Weee, Copper Cable, Metal Slag, Incinerator Ash

Fine Minerals: Tin, Tungsten, Chromite, Tantaulm Gold: Alluvial, Milled Ore, Gold Room Slag, Gravel By-product

Operating variables: Solids characteristics, Table Speed, Stroke speed, Deck inclination, Wash water volume

The Holman-Wilfley style tables have studied the needed motion, inertia, stroke patterns, riffle designs, and launderers to master the shaker table design and function. All Holman-Wilfley models of shaker tables carry the CE marking for European safety standards.

ELECTRICAL SUPPLY: Single phase, 110/230V 50/60Hz, Motor is 0.37kW WATER SUPPLY: Wash Water requirement of 6 to 12l/min, Feed dilution to ~25-30% w/w solids CAPACITY: Samples: 1-20 Kgs/hour, Continuous: <75Kg/hour

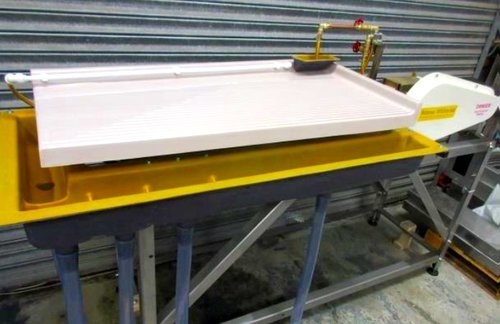

Typical Applications:

• Recovery of Gold and other precious metals from low tonnage streams.

• Recovery of cassiterite and tantalite/columbite from ores.

• Recovery of other heavy minerals and materials.

• Gravity cleaning / final concentration in fine particle gravity circuits.

Key Features:

• Unit is driven by a Holman head motion with a stroke adjustment of between 8mm and 16mm (nominal).

• Head motion is self-lubricating. Simple, robust design requires minimal maintenance.

• Deck is supported on sixteen carriers and is vibrated diagonally along the entire length.

• Deck is manufactured from high quality timber, marine grade plywood and covered with 5mm smooth rubber for maximum durability (Black/White option).

• Specific riffle patterns can be fitted to maximize metallurgical performance (by particle size/application data).

• Table tilt can be easily adjusted using a hand wheel, even while the machine is in operation.

• Supplied on its own galvanized steel base (BS EN1461).

• Unit fitted with 1.5kW IP56 motor.

• Wear resistant polyurethane “fingers” along the concentrate edge provide accurate cutting of concentrates.

• Wash down hose and spray gun option.

• New design feed box facilitates even solids distribution onto the deck (urethane).

• Product launders included.

• Stainless steel water pipe and fittings are optional.

ELECTRICAL SUPPLY: 3 phase, 380/415V 50Hz, 1.5kW, IP56 Motor WATER SUPPLY: Wash Water requirement of 5 to 20l/min, Feed dilution to 25-30% w/w solids

Typical Applications:

• Recovery of precious metals from PCB (recycling of computers/mobile phones etc.).

• Recovery of copper from cable recycling.

• Chromite/Ferrochrome processing.

• Processing of plastics/glass etc. from shredder residues.

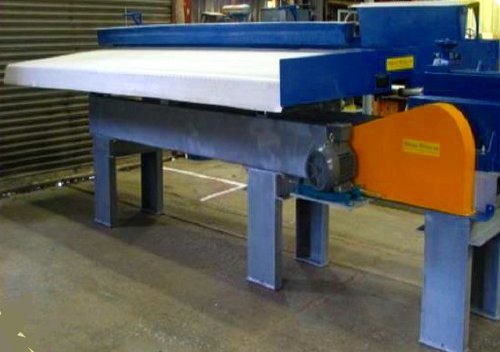

Key Features:

• Available as single (7000SD) or double deck unit (7000DD)

• Unit is driven by a robust Wilfley head motion with a stroke adjustment options of: 9mm – 22mm (nominal) 16mm – 40mm (nominal)

• Head motion is self-lubricating. Simple, robust design requires minimal maintenance.

• Deck is supported on two flexing spring packs and is vibrated longitudinally along the entire length.

• Deck manufactured from high quality timber, marine grade plywood covered with 5mm smooth rubber for maximum durability (Black/white option).

• A range of riffle patterns available to suit the application metallurgical performance.

• Table tilt can be easily adjusted using a hand wheel, even while the machine is in operation.

• Supplied on its own galvanized steel base (BS EN1461).

• Feed box polyurethane lined.

• Optional polyurethane lined product launders.

• All steels galvanized (BS EN1461).

• Unit fitted with 2.2kW IP56 motor.

• Stainless steel water pipe and fittings are optional.

SHIPPING DIMENTIONS: 1800kgs 7000SD (DD 3600Kgs),Units ship in 20ft Containers FOOTPRINT: ~6m x 2.5m (not inc, operator access) DECK DIMENSIONS: Nominal 7.5m2 Deck area, Concaved Edge 1585mm, Tail Edge 4180mm, 290Kgs

ELECTRICAL/MOTOR DETAILS (x2 for DD): 3 phase, 380/415 volt, 50Hz, 2.2 kW, IP56 Motor WATER SUPPLY (x2 for DD): Wash Water requirement of 20 to 40l/min, Feed dilution to ~25-30% w/w solids SOLIDS THROUGHPUT RATE: Up to 2500Kgs/hour 7000SD

Typical Applications:

• Recovery of precious metals from low tonnage streams.

• Recovery of cassiterite and tantalite/columbite from ores.

• Mineral Sands (zircon/Ilmenite etc.) and other heavy minerals.

• Gravity cleaning / final concentration in fine particle spiral and High-G gravity circuits.

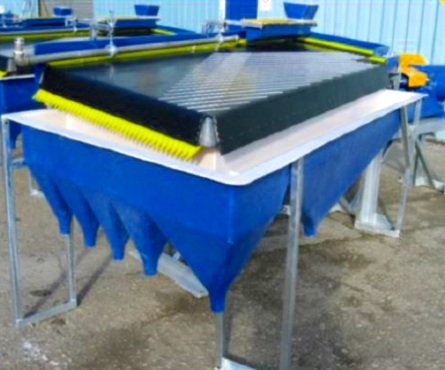

Key Features:

• Available as single (8000SD) or double deck unit (8000DD)

• Driven by a robust Holman head motion, with stroke adjustment of between 8mm and 16mm (nominal). Head motion is self-lubricating requiring minimal maintenance.

• Deck supported on forty-two yellow polymer carriers and vibrated diagonally along the entire length.

• Deck manufactured from high quality timber, marine grade plywood and covered with 5mm smooth rubber for maximum durability. (Black/white option).

• Supplied on its own galvanized steel base (BS EN1461).

• Specific riffle patterns can be fitted to maximize metallurgical performance (by particle size/application data).

• Deck tilt can be easily adjusted using a hand wheel, even while the machine is in operation.

• Wear resistant polyurethane “fingers” along the concentrate edge provide accurate cutting of concentrates.

• New design feed box facilitates even solids distribution onto the deck (urethane).

• Polyurethane lined product launders included.

• Wash water pipe and fittings included (galvanized).

SHIPPING DIMENTIONS: 1600kgs (DD 3500Kgs), Units ship in 20ft Containers FOOTPRINT: ~6m x 2.5m (not inc operator access) DECK DIMENSIONS: Nominal 7.5m2 Deck area, Concaved Edge 1600mm, Tail Edge 4900mm, 270Kgs

ELECTRICAL/MOTOR DETAILS (x2 for DD): 3 phase, 380/415 volt, 50Hz,1.5 kW, IP56 Motor (x2 for DD) WATER SUPPLY (x2 for DD): Wash Water requirement of 20 to 35l/min, Feed dilution to ~25-30% w/w solids SOLIDS THROUGHPUT RATE (x2 for DD): Up to 2500Kgs/hour 8000SD (particle size dependent)
